Hydraulic Hand Punch Tool

Name: Hydraulic Hand Punch Tool
Brand: XINYA
Price: 1 USD

Quality Hydraulic Hand Punch Tool for sale

Brand Name : XINYA

Model Number : SH-70B

Certification : ISO

Place of Origin : Jiangsu,China

MOQ : 2 Set/Sets

Payment Terms : L/C, T/T,

Supply Ability : 200 Set/Sets per Month

Delivery Time : 7 workdays after payment

Packaging Details : standard export wooden case

Max Thickness of Plate : 13mm

Output : 31T

Item : SH-70B Hydraulic Hole Puncher

Standard Punching Dies : 10.5,13.5,17.5,20.5 mm

Weight : 13kg

Material : Alloy Steel

Max Diameter of Hole : 20.5mm

Throat Depth : 70mm

Contact Now

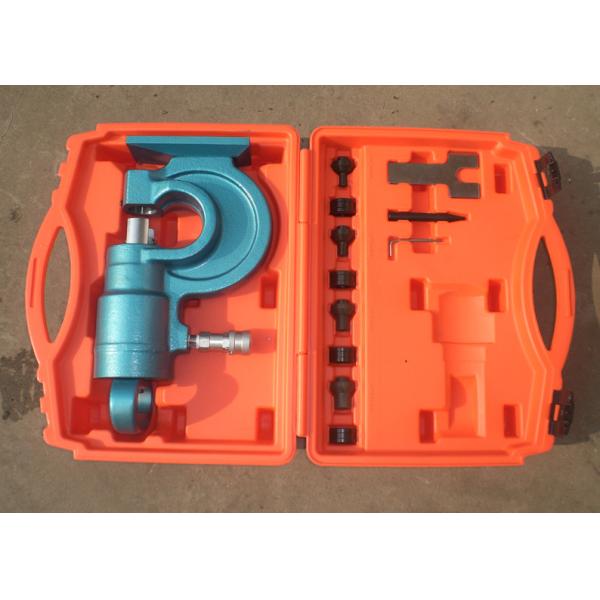

SH-70B Hydraulic Puncher / Hydraulic Hand Punch with Alloy Steel Material

Application

SH-70B Hydraulic Hole Puncher is a remote control tool,it works with an external hydraulic pump(Hand,Fool of Electric Pump).With 4 pairs standard punching dies(10.5,13.5,17.5,20.5mm),the diameter of punching hole is between 10.5mm and 20.5mm.It is applied to angle iron,steel plate and so on.

Features

1 The punching speed is fast,it only needs a few seconds for punching.

2 The orifice is smooth without burr.

3 It has accurate locating point and don't shift.

4 Four pairs standard punching dies:10.5,13.5,17.5,20.5mm

Quality Control

We have the complete production equipments and professional production team to manage the whole process from producing to packing and shipping.All of the products will be 100% tested before the delivery to ensure the quality of our products.

Our Values

1 Take First-Class Quality as Target and First-Class Service.

2 As Responsibility,To Succeed by Scientific Management.

3 Customer in Heart,Quality in Hand,Technology in the Lead.

Technical Data of SH-70B Hydraulic Hole Puncher

Model Type	Output(T)	Throat Depth(mm)	Weight(KG)	Max Thickness of Plate(mm)	Max Diameter of Hole(mm)	Standard Punching Dies(mm)
SH-70B	31	70	13	13	Φ20.5	Φ10.5,Φ13.5, Φ17.5,Φ20.5
